Code Analysis in Anypoint Studio

Before analyzing the source code in Anypoint Studio, make sure you have

On The Fly Results:

On The Fly Results table/view will display the issues related to the project that user is working on. Project is determined based on the current active file (i.e. the file that user is working on) in Anypoint Studio.
Issues will be detected and reported as and when the connectors are configured in the editor. With this, the issues can be fixed even before they exists.
Follow the below steps to explore On The Fly Results view.

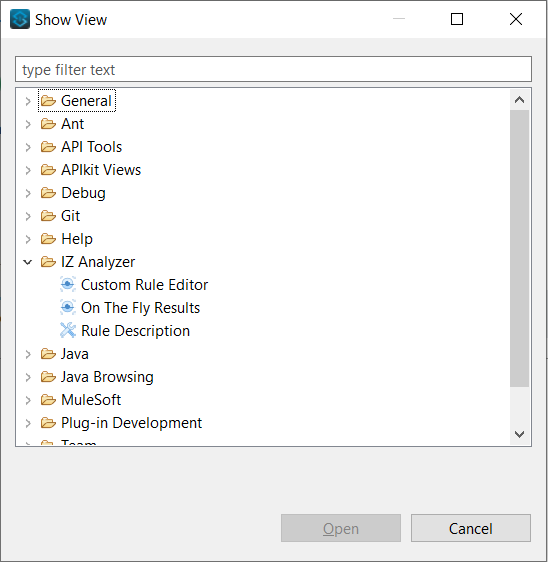

  1. Go to WindowShow ViewotherIZ Analyzer → select On the Fly Results studio add on the fly results

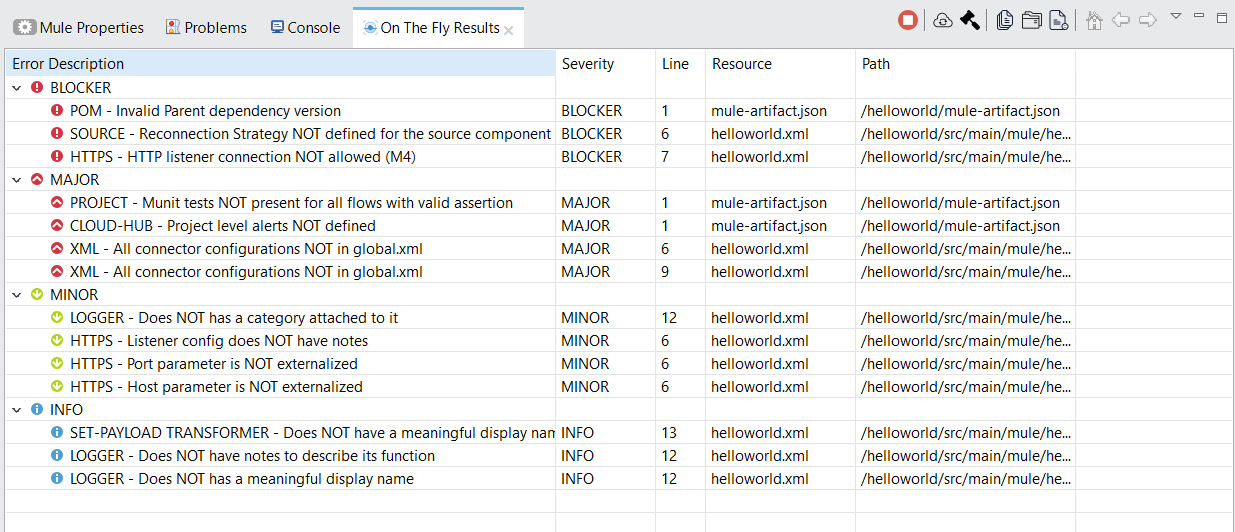

  2. Open any mule project xml, the issues will be automatically detected and the results can be seen in On the Fly Results panel. studio on the fly results

    • NOTE: On The Fly Results scans the whole project corresponding to current mule project xml and displays the results

On The Fly Results Tab Features

The Results tab provides options such as start or stop analysis, sync rules from the server, reload on the fly results and helps us to quickly sort through the results based on file type, componenty type and severity.

  1. Go to WindowShow ViewotherIZ Analyzer → select On the Fly Results. The options are displayed at the top right corner. on the fly results tab options

  2. By default the analysis is active and will immediately report any issues it sees fit. Clicking on the Stop Button will stop the analysis. You can start it at a later time once a part of your development is completed. on the fly results tab options start stop analysis

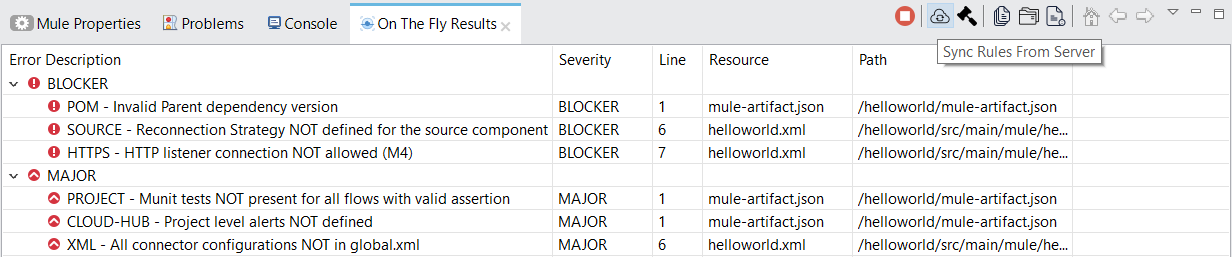

  3. Your organization might have added new rules or updated the rules in server. By clicking on the Sync Rules option, you will be importing these updated rules onto anypoint studio. on the fly results tab options sync rules

  4. By Clicking on Reload on the fly results option, your project will be validated against the rules to refresh the tab so as to display any new issues along with the previously displayed issues. on the fly results tab reload results

  5. The Issues seen in the On The Fly Results tab can be grouped based on file type, component type and severity.

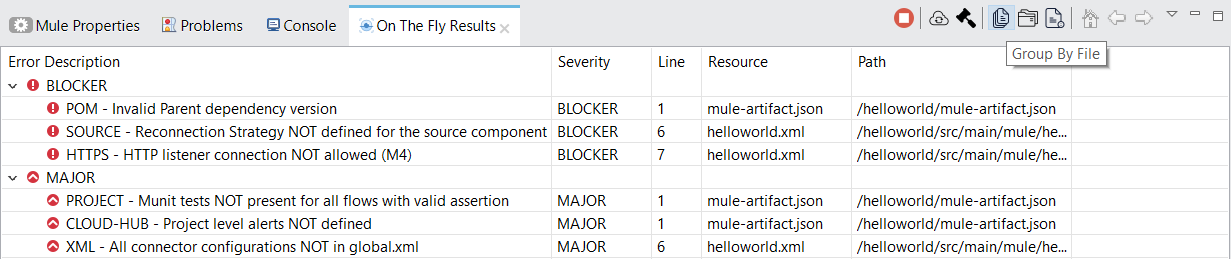

    1. Grouping based on File Type. on the fly results tab options group by file

    2. Grouping based on Component Type. on the fly results tab options group by component

    3. Grouping based on Severity. on the fly results tab options group by severity

Issue Fix Recommendation

On The Fly Results precisely point out the problem in each file with line number, but many users might not be aware of issue fix.
Issue fix recommendation helps to deal with this scenario with detailed description and examples on how to fix the issue.

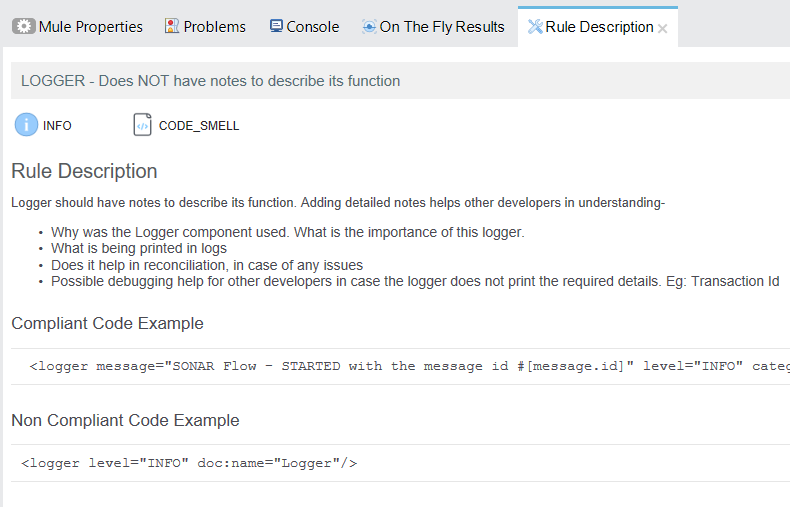

  1. Double click on any issue that need a fix to open up the Rule Description view. studio rule description view

  2. Rule Description view provides information about:

    1. Type of Issue. Eg: Code Smell, Bug

    2. Detaild description of the violated rule/issue

    3. Non Compliant Code Example

    4. Compliant Code Example, which guides developers on how to fix the issue

    5. Optionally, an external link to any official documentation for further information about the fix

Upload to Server

After development is complete, users might want to upload the project to server and save the analysis results or for any other purposes.
IZ Analyzer provides an easy option to upload project to server from Anypoint Studio.

This step assumes that the server details are configured well in advance as mentioned in Installing Studio Plugin

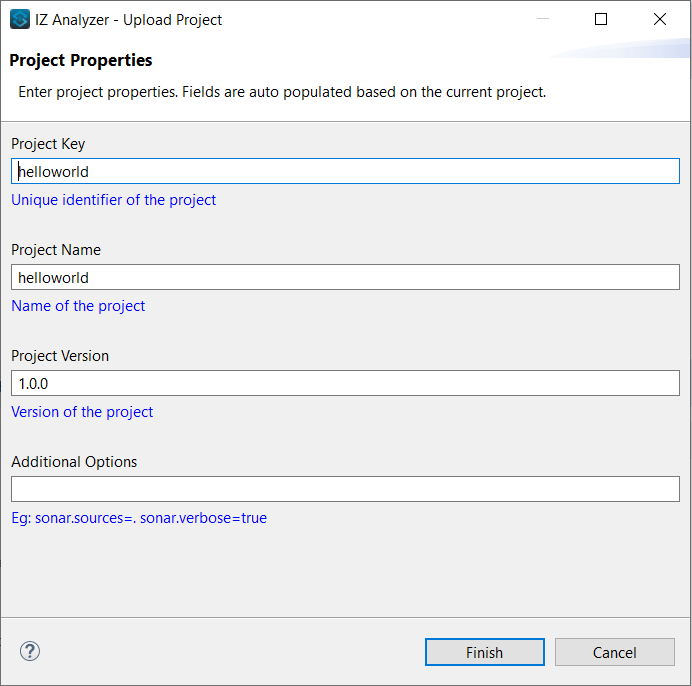

  1. Right click on the project that needs to be uploaded to server, click on IZ Analyzer - Server Upload studio upload to sonarqube

  2. Fill in the values required for server upload and click on Finish:

    1. Project Key - Unique key of the project

    2. Project Name - Display name of the project

    3. Project version - Version of the project

  3. Detailed logs of upload/scanner process will be displayed in console view studio upload soanr qube

  4. Results of analysis can be further explored in Analyzer] dashboard sonar server results
