Configure Schedule

  • Repeatedly creating a schedule for the same organization and environment will simply overwrite the pre-existing schedule.

  • Required Connected App scopes for each Job Type reference can be found here

  1. Navigate to Schedules → Schedules and click on Configure Schedule

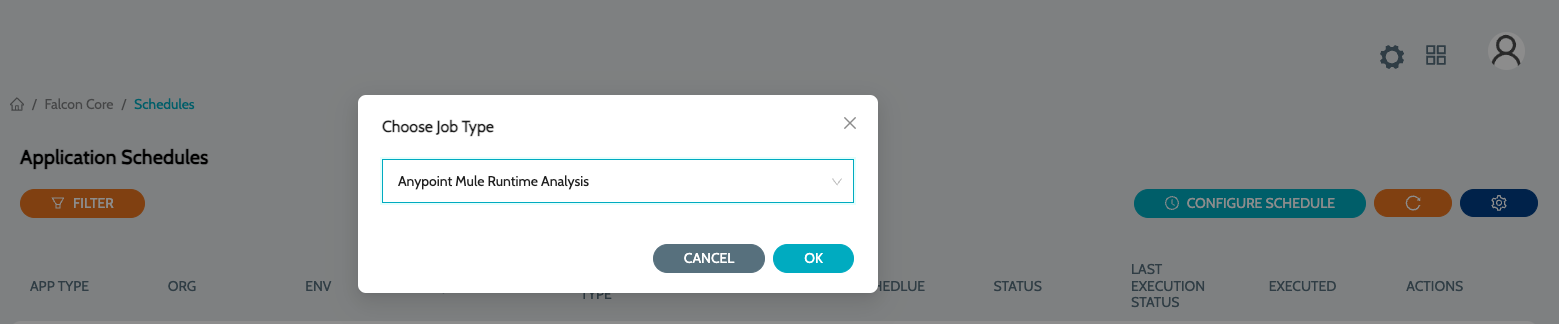

  2. Select appropriate job type

    1. Anypoint Mule Runtime Analysis - Job Type to scan application deployed in Runtime Manager

    2. Anypoint API Instance Analysis - Job Type to scan application deployed in API Manager

    3. Anypoint Exchange APIs Analysis - Job Type to scan RAML/OAS assets published to exchange

    4. API Health Check - Job Type to monitor APi Endpoints mule runtime analysis 1

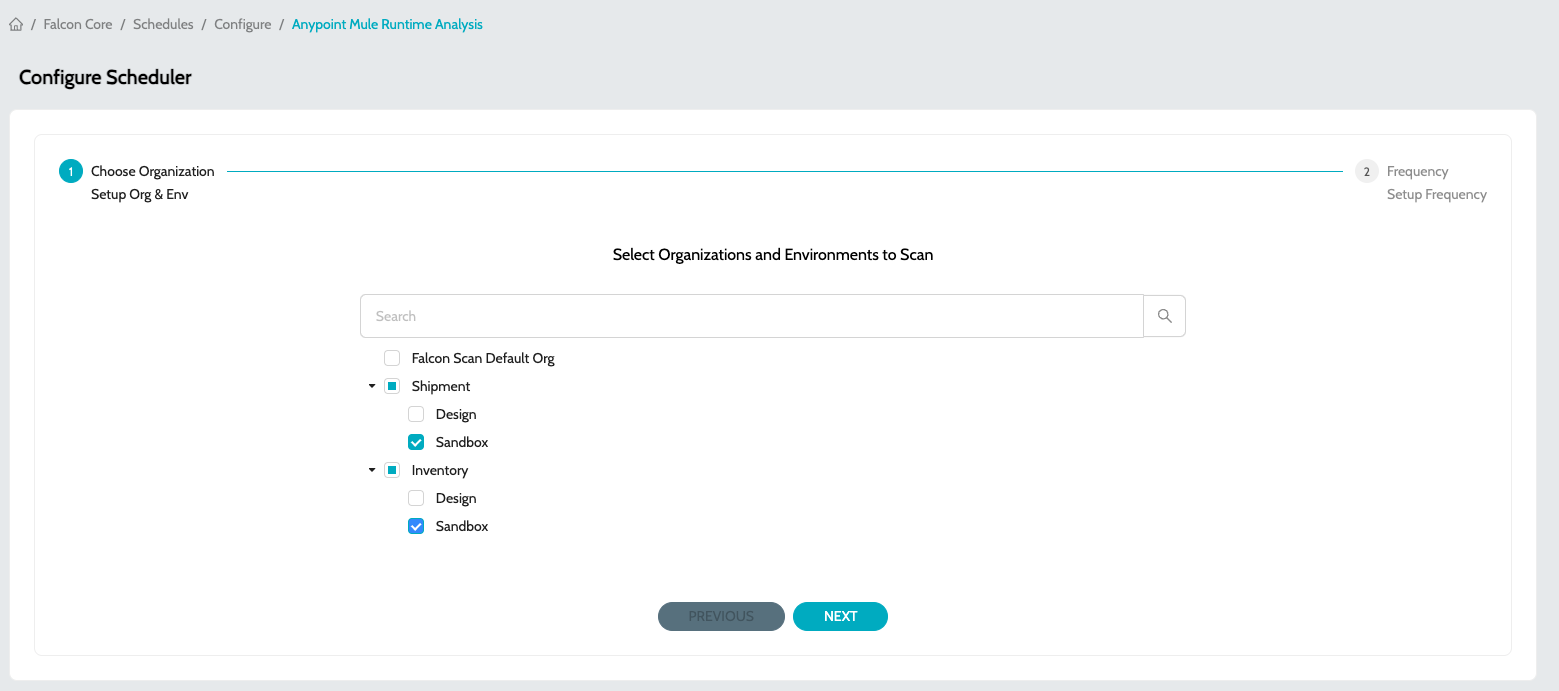

  3. Select the Organizations and Environments to perform the scan org env selection

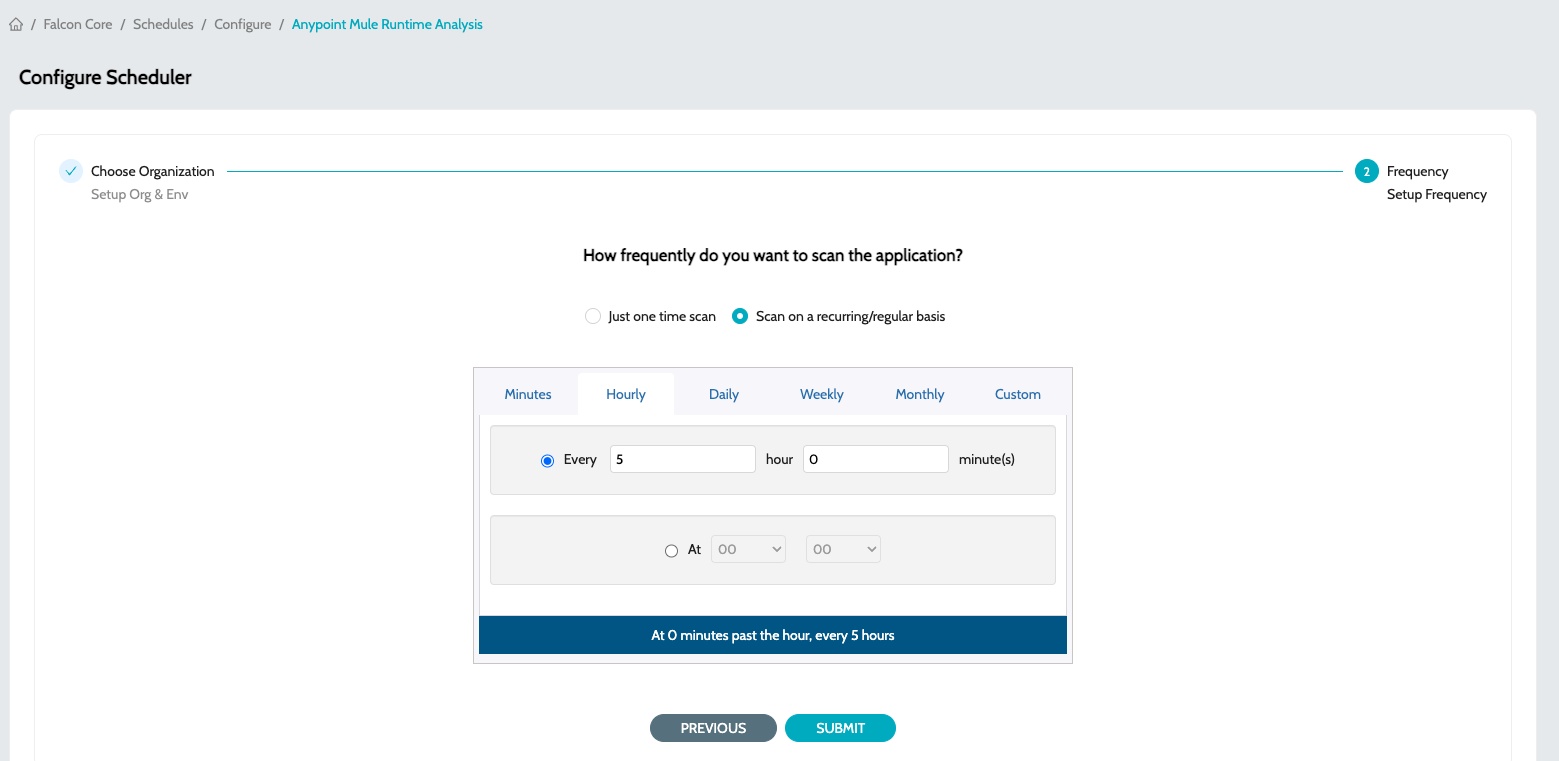

  4. Select the schedule/frequency at which the analysis should be performed schedule selection

  5. Click on Submit to configure the schedule
