Falcon Suite Cluster Installation

Before installing, make sure you have:

The cluster install allows Falcon Suite to run in a clustered configuration to make it resilient to failures.

Overview

The default configuration for the cluster install comprises a load balancer, at least 2 stand alone server installations (with agents installed in them or have additional agent nodes as per requirement) and a database server:

  1. Two Falcon suite server nodes responsible for handling web requests from users (Web component) and handling computational requirements (API component). You can add additional falcon suite server nodes to increase computing capabilities. SSDs perform significantly better than HDDs for these nodes

  2. A Reverse Proxy / Load Balancer to load balance traffic between the two falcon suite server nodes. The installing organization must supply this hardware or software component.

  3. Falcon Suite database cluster - PostgreSQL database is recommended. Other supported database list can be seen from our requirements section of the documentation. This software must be supplied by the installing organization.

  4. Falcon Suite agent nodes - If you have installed agents on the falcon suite server nodes itself, you would not need additional agent nodes. If you install additional agent nodes for custom requirements, you do not need to configure them as a cluster or behind a load balancer and can act independently.

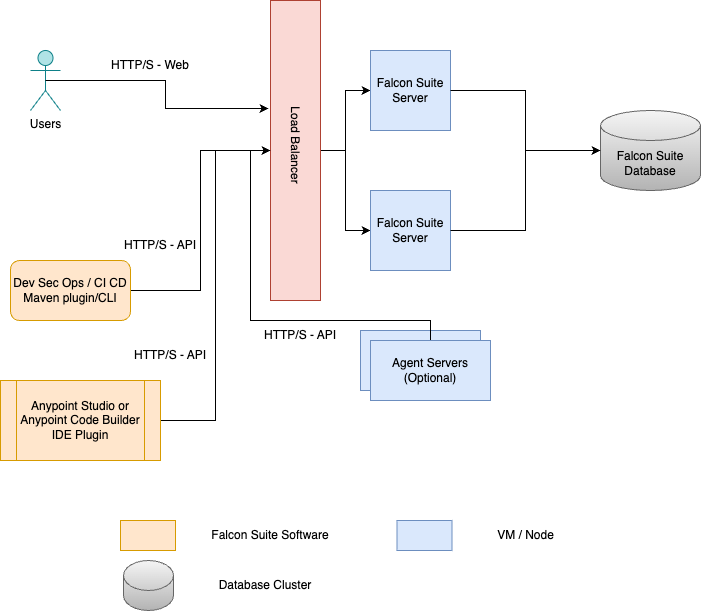

With this configuration, one falcon suite server node can be lost without impacting users. Here is a diagram of a simple topology:

falcon suite architecture cluster

Additional considerations

For better performance - especially when using large number of falcon pulse end point scanning, it is recommended to have additional agent nodes on separate machine to perform the health checks.

All falcon suite server nodes should be identical in terms of hardware and software. Falcon suite server and agent nodes, however, can differ from one another. Generally, agent nodes are configured with more CPU and RAM than falcon suite server nodes.
